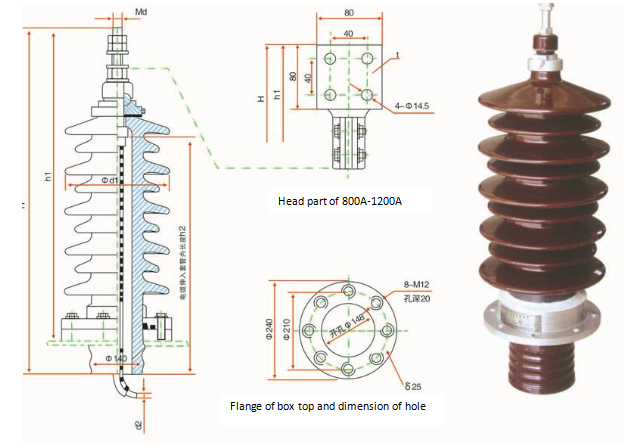

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance (mm) |
Weight Kg |
||||||
|
H |
h1 |
h2 |
Md |
d1 |
d2 |
t |
||||||
|
WT.0035.40.5.LF |
BLF-40.5/35 |
755 |
555 |
571 |
M16 |
210 |
8 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0100.40.5.LF |
BLF-40.5/100 |
755 |
555 |
571 |
M16 |
210 |
10 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0250.40.5.LF |
BLF-40.5/250 |
755 |
555 |
571 |
M16 |
210 |
20 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0400.40.5.LF |
BLF-40.5/400 |
755 |
555 |
571 |
M16 |
210 |
23 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0600.40.5.LF |
BLF-40.5/600 |
755 |
555 |
571 |
M20 |
210 |
27 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0800.40.5.LF |
BLF-40.5/800 |
855 |
655 |
571 |
M24 |
210 |
30 |
12 |
Single Umbrella |
7 |
875 |
20 |
|
WT.1000.40.5.LF |
BLF-40.5/1000 |
855 |
655 |
571 |
M30 |
210 |
35 |
12 |
Single Umbrella |
7 |
875 |
20 |
|
WT.1200.40.5.LF |
BLF-40.5/1200 |
855 |
655 |
571 |
M33 |
210 |
40 |
12 |
Single Umbrella |
7 |
875 |
21 |
|
WT.0035.40.5.LF.W |
BLFW-40.5/35 |
840 |
555 |
656 |
M16 |
210 |
8 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0100.40.5.LF.W |
BLFW-40.5/100 |
840 |
555 |
656 |
M16 |
250 |
10 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0250.40.5.LF.W |
BLFW-40.5/250 |
840 |
555 |
656 |
M16 |
250 |
20 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0400.40.5.LF.W |
BLFW-40.5/400 |
840 |
555 |
656 |
M16 |
250 |
23 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0600.40.5.LF.W |
BLFW-40.5/600 |
840 |
555 |
656 |
M20 |
250 |
27 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0800.40.5.LF.W |
BLFW-40.5/800 |
940 |
655 |
656 |
M24 |
250 |
30 |
12 |
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.1000.40.5.LF.W |
BLFW-40.5/1000 |
940 |
655 |
656 |
M30 |
250 |
35 |
12 |
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.1200.40.5.LF.W |
BLFW-40.5/1200 |
940 |
655 |
656 |
M33 |
250 |
40 |
12 |
Big and small umbrellas |
11 |
1280 |
32 |
