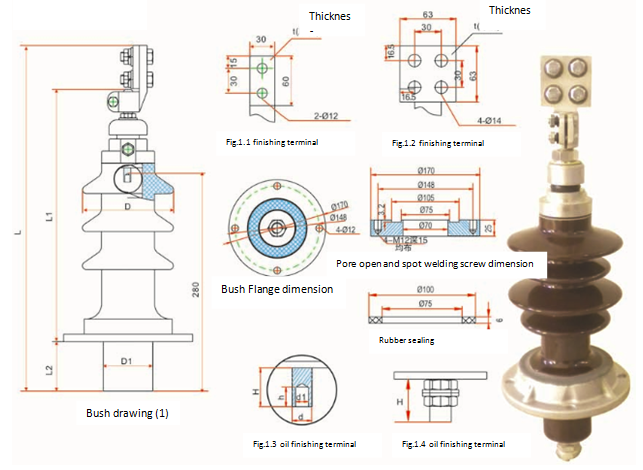

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/ Current KV/A |
Dimensions (mm) |
Finishing terminal |
oil finishing terminal |
No of Sheds |
Creep age Distance (mm) |
||||||||||
|
L |
L1(±10) |
L2 |
L3 |
D |
D1 |
Fig. |
t |
Fig. |
H |
h |
d |
d1 |
||||
|
WTFG.1050 |
BP-12/100-4L |
455 |
330 |
80 |
265 |
145 |
65 |
Fig.1.1 |
10 |
Fig.1.3 |
30 |
25 |
25 |
18 |
Bigx2, smallx2 |
380 |
|
WTFG.1051 |
BP-12/250-4L |
455 |
330 |
80 |
265 |
145 |
65 |
Fig.1.1 |
10 |
Fig.1.3 |
30 |
25 |
25 |
18 |
Bigx2, smallx2 |
380 |
|
WTFG.1052 |
BP-12/400-4L |
465 |
335 |
80 |
265 |
145 |
65 |
Fig.1.2 |
10 |
Fig.1.3 |
30 |
25 |
30 |
23 |
Bigx2, smallx2 |
380 |
|
WTFG.1053 |
BP-12/630-4L |
465 |
335 |
80 |
265 |
145 |
65 |
Fig.1.2 |
10 |
Fig.1.3 |
40 |
30 |
30 |
25 |
Bigx2, smallx2 |
380 |
|
WTFG.1054 |
BFW-12/100 |
505 |
332 |
115 |
|
145 |
65 |
Fig.1.1 |
10 |
Fig.1.4 |
40 |
|
|
|
Bigx2, smallx2 |
380 |
|
WTFG.1055 |
BFW-12/250 |
505 |
332 |
115 |
|
145 |
65 |
Fig.1.1 |
10 |
Fig.1.4 |
40 |
|
|
|
Bigx2, smallx2 |
380 |
|
WTFG.1056 |
BFW-12/315 |
505 |
332 |
115 |
|
145 |
65 |
Fig.1.2 |
12 |
Fig.1.4 |
40 |
|
|
|
Bigx2, smallx2 |
380 |
|
WTFG.1057 |
BFW-12/630 |
530 |
332 |
115 |
|
145 |
65 |
Fig.1.2 |
12 |
Fig.1.4 |
40 |
|
|
|
Bigx2, smallx2 |
380 |
